Included are some concealed lightning protection bonding pictures of a concealed lightning protection system.

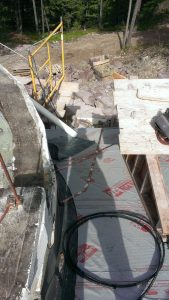

1.) Bonding Air Terminal

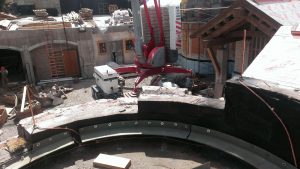

2. Bonding Air Terminal Run

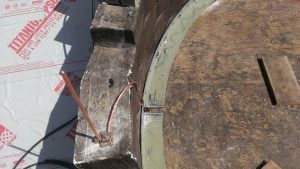

3. Bonding To Metal Concealed

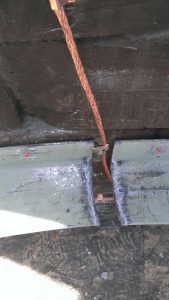

4. Bonding To Metal

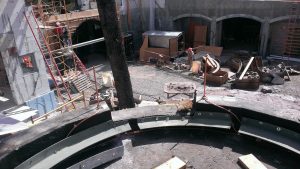

5. Rooftop Bonding Splice

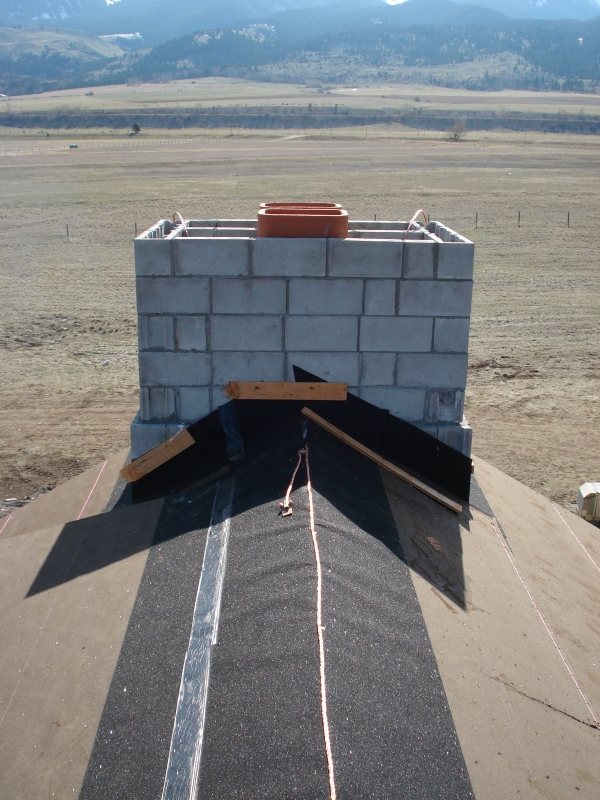

6.) Residential Roof Bond

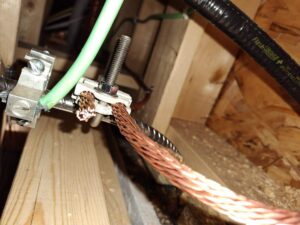

7.) Electrical Bond to LPS Bonding/Grounding
