Kuefler Lightning
|
|
|

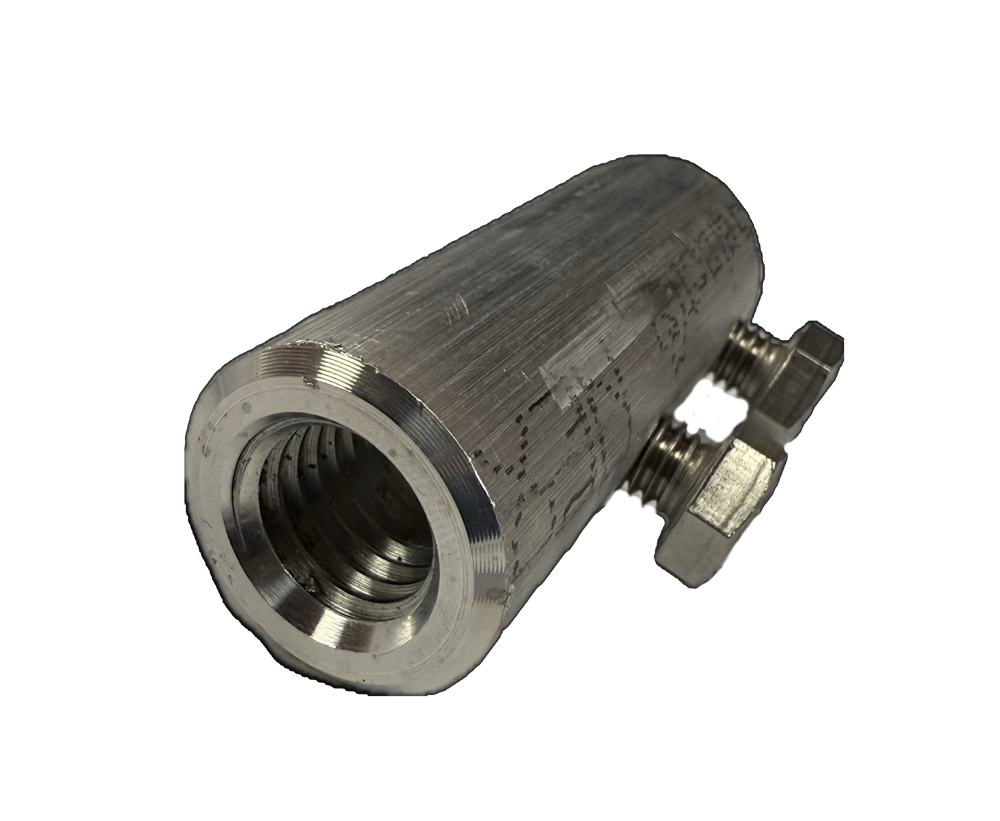

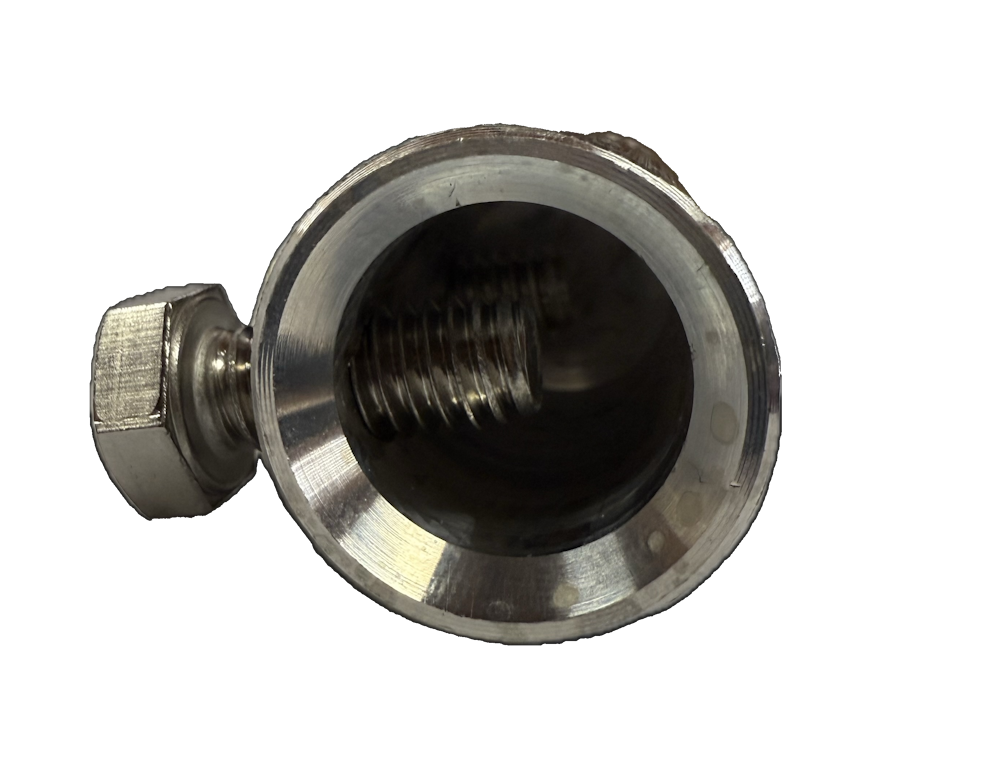

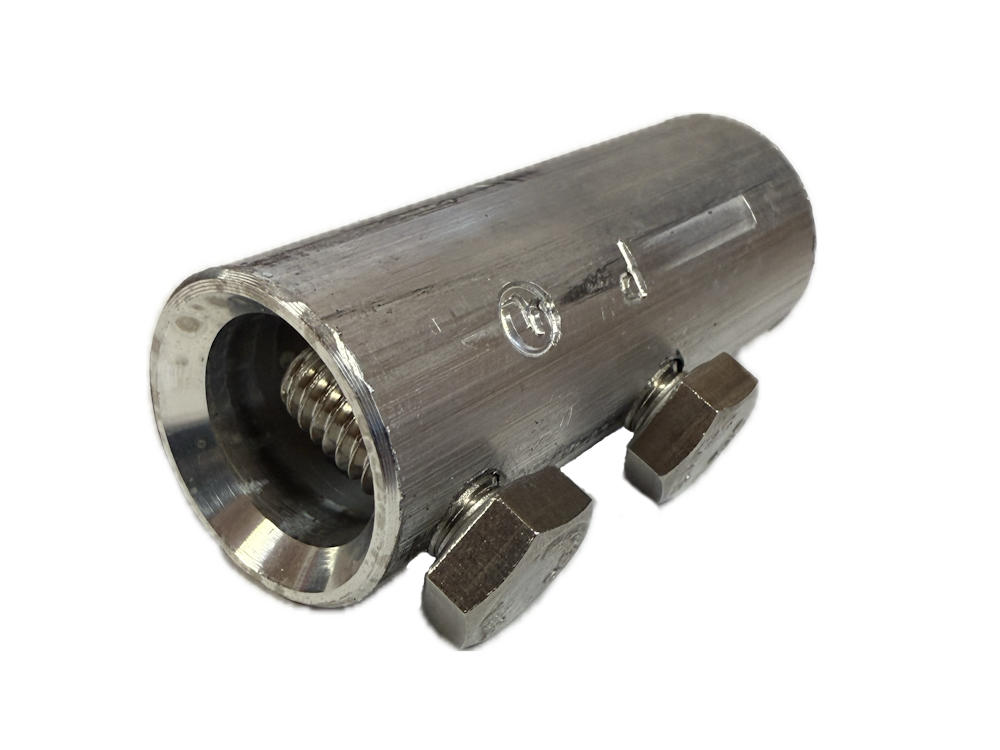

Aluminum or brass machined straight base. Machined from 1” round material and available for all air terminal sizes. Specify when ordering. Also available with set screws. UL Listed
Note: Also available in Tinned Plated. Add “T” to the end of Brass Part Number.
| Material | ||||
|---|---|---|---|---|
| Fastener Type | Air Terminal Diameter | Aluminum | Brass | Tinned Brass |
| Set Screw | 5/8" | A23658SS | C23658SS | C23658SST |
| Set Screw | 1/2" | A23612SS | C23612SS | C23612SST |
| Set Screw | 3/8" | C23638SS | C23638SST | |
| Hex Bolts | 3/8" | C23638 | C23638T | |
| Hex Bolts | 1/2" | A23612 | C23612 | C23612T |
| Hex Bolts | 5/8" | A23658 | C23658 | C23658T |
Aluminum or brass machined straight base. Machined from 1” round or 1” Hex rod stock material and available for all air terminal sizes. Specify when ordering. Also available with set screws. UL Listed
Note: Add suffix “H” to end of part number to reference Hex rod material.
| Material | Aluminum, Brass, Tinned Brass |
|---|---|
| Fastener Type | Hex Bolts, Set Screw |
| Air Terminal Diameter | 3/8", 1/2", 5/8" |
