Additional information
| Material | Stainless Steel |
|---|---|
| Fits Rectangular Seams/Beams | Up to 1" Wide |
| Fits Rounded/ Boxed Seams | Up to 1-1/2" Wide |

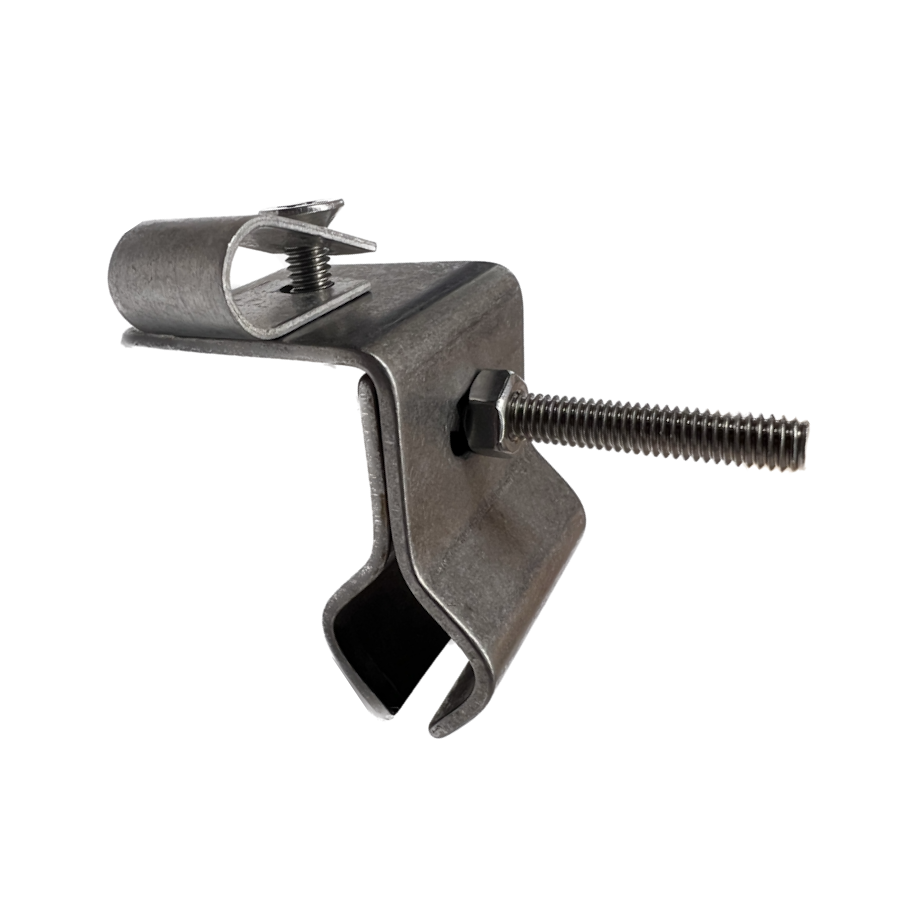

LPS815-Standing Seam Fastener
Lightning Protection Standing Seam Clamp, used for securing lightning conductor to various standing seam roofs. Mounting groove has variable mounting applications ranging from rectangular seams or beams (up to 1″ wide) to seams with rounded or boxed ridges (up to 1-1/2″ wide), with the cable fastener adjusting for either parallel or perpendicular cable runs. LPS815 can also be used to mount lightning protection air terminal bases to standing seam roofs (refer to picture example shown) . Use 704 One Hole Loop Fasteners for securing conductor (not included).
Click part number below to add the item to your Quote Request.
| Material | ||
|---|---|---|
| Fits Rectangular Seams/Beams | Fits Rounded/ Boxed Seams | Stainless Steel |
| Up to 1" Wide | Up to 1-1/2" Wide | LPS815 |
