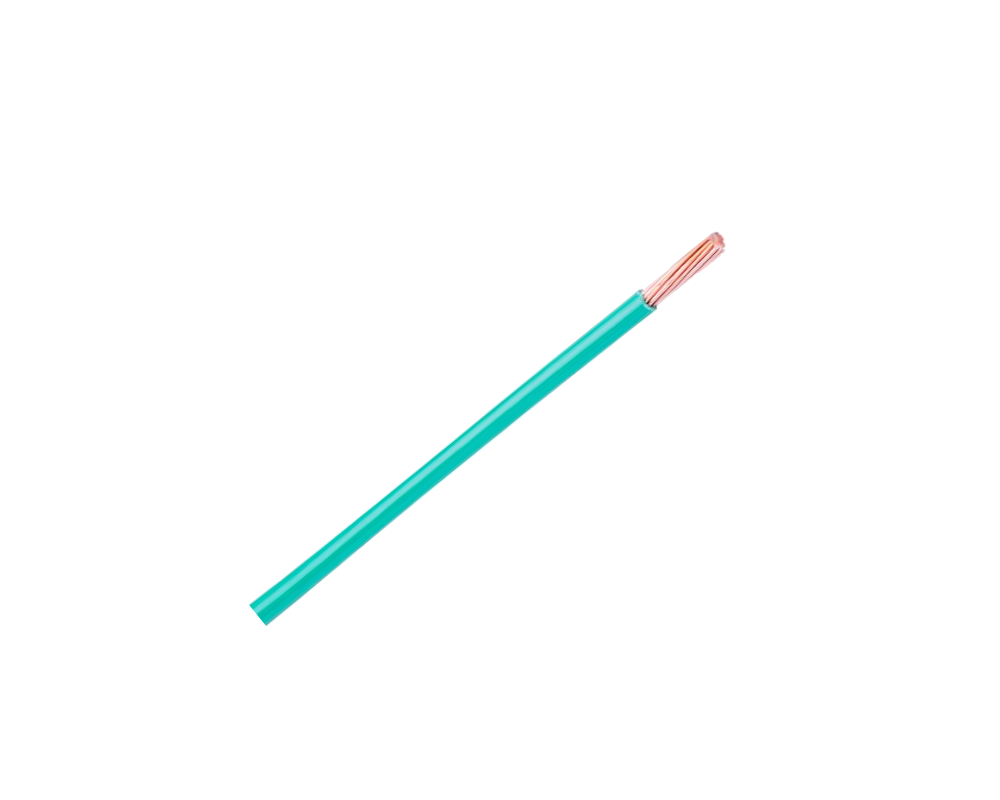

Green Insulated Conductor Type THHN Building Wire, intended for general purpose applications and may be installed in conduit, duct, or other recognized raceways in wet or dry locations. Intended for both new work and rewiring applications. The smaller diameter wire of the wire permits additional circuits. Larger conductor shall also be installed in the conduit without exceeding maximum fill limitations. The insulation is a high quality, heat and moisture resistant polyvinyl chloride compound over which a heat and light stabilized nylon jacket is tightly applied.
Standards: Underwriters’ Laboratories UL 83, Federal Specification JC-30A, and Gasoline and Oil Resistant II (UL)
Sunlight resistant, VW-1 Flame Resistant, Lead Free-ROHS Compliant, and 600v.
| Part Number | Size (AWG) | Number of Strands | Jacket Type | CM Area | Approximate Weight lbs./M ft. |
|---|---|---|---|---|---|
| 6-19G | 6 | 19 | THHN | 26,240 | 98 |
| 67TG | 6 | 7 | THW2 | 26,240 | 105 |
| 47G | 4 | 7 | THW2 | 41,740 | 160 |
| 4-19G | 4 | 19 | THHN | 41,740 | 157 |
| 27G | 2 | 7 | THW2 | 66,360 | 245 |
| 2-19G | 2 | 19 | THHN | 66,360 | 240 |
| 1/019G | 1/0 | 19 | THHN | 105,600 | 372 |
| 2/019G | 2/0 | 19 | THHN | 133,100 | 462 |
| 4/019G | 4/0 | 19 | THHN | 211,600 | 716 |
| pn | Part Number |
|---|---|
| Size (AWG) | 6, 4, 2, 1/0, 2/0, 4/0 |
| Number of Strands | 7, 19 |
| Jacket Type | THW2, THHN |
| CM Area | 26,240, 41,740, 66,360, 105,600, 133,100, 211,600 |
| Approximate Weight lbs./M ft. | 105, 98, 160, 157, 245, 240, 372, 462, 716 |
