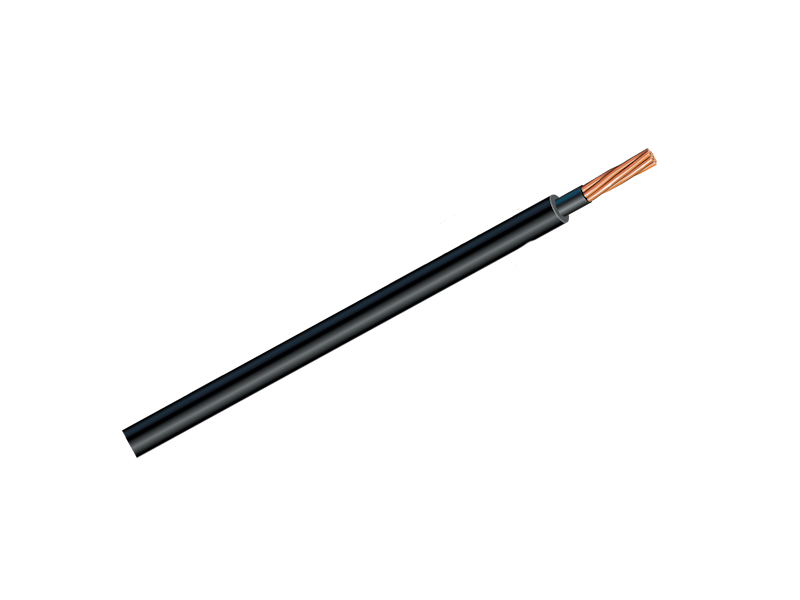

Draka FAA-L-824 Type C Cable, Single Conductor 5000 volt Non shielded power cables suitable for L-824 underground installation for lighting at airports per FAA L-824 Type C and AC 150/5345-53 Appendix 3. They are rated for use at 90 degrees Celsius wet or dry. FAA-L-824 cables are suitable for use in conduit, duct, aerial, and direct burial installations.
The conductor is soft drawn stranded bare copper per ASTM B3 and ASTM B8. The insulation is crosslinked polyethylene (XLPE) 110 mil thick in accordance with NEC 310-6a and ICEA S-96-659. An optional separator tape under the insulation eases stripping. The jacket surface shall be printed or indented with: DRAKA CABLETEQ USA-PA TAMAQUA CABLE (AWG SIZE) 5 KV XLP NONSHIELD NONJACKET FAA L-824 ICEA S-96-659 (NEMA WE71).
The standards and approvals:
FAA Advisory Circular 150/5345-7E
Airport Lighting Equipment Certification Program per AC150/5345-53 appendix 3 Underground Electrical Cable for Airport Lighting Circuits per spec L-824 ICEA S-96-659 (NEMA WC71).
Other Colors Available Upon Request
| Part Number | Conductor Size | Stranding | Insulation Thickness in. (mm) | Approximate Cable O.D. in. (mm) | Cable Weight lbs./mft (kg/km) |
|---|---|---|---|---|---|
| 388099 | 4 AWG | 7 x 0.0772 | 0.110 (2.8) | 0.460 (11.7) | 185 (276) |
| 389172 | 6 AWG | 7 x 0.0612 | 0.110 (2.8) | 0.410 (10.4) | 129 (192) |
| 389171 | 8 AWG | 7 x 0.486 | 0.110 (2.8) | 0.375 (9.53) | 92 (137) |
| pn | Part Number |
|---|---|
| Conductor Size | 8 AWG, 6 AWG, 4 AWG |
| Stranding | 7 x 0.486, 7 x 0.0612, 7 x 0.0772 |
| Insulation Thickness in. (mm) | 0.110 (2.8) |
| Approximate Cable O.D. in. (mm) | 0.375 (9.53), 0.410 (10.4), 0.460 (11.7) |
| Cable Weight lbs./mft (kg/km) | 92 (137), 129 (192), 185 (276) |
