Kuefler Lightning Protection, Inc. is an authorized distributor for Ditek Surge Protection Products.

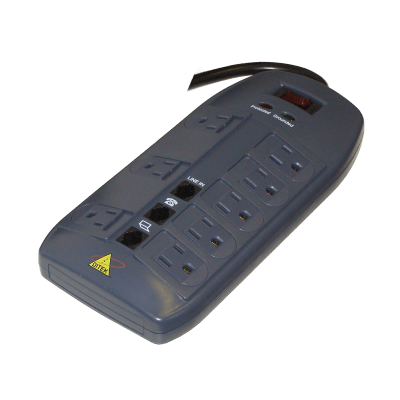

The Ditek Eight Outlet Strip Surge Protection Device is the perfect choice for AC power and telco/modem/fax line protection. With up to six transformers and built-in hybrid circuitry that provides excellent point of use protection, it is the preferred choice for residential or office surge protection. Sensitive electronics? EMI/RFI filtering provides extra protection specifically for sensitive electronics.
It features 8 AC protected outlets, up to six transformers, a diagnostic LED that indicates ground presence and suppressor function, automatic shutdown features that turns off power in case of suppressor overload, 1 in/ 2 out RJ11 Telco protection, and mounting slots that allow installation on the wall or backboard. Best applications: Home/Office, voice and paging systems, security systems, and access control systems.
| Part Number | Service Voltage | Max Continuous Current | MCOV | Surge Current Rating | Connection Method | Voltage Protection Rating |
|---|---|---|---|---|---|---|
| DTK-8FF | 110-120 VAC | 15 Amps | 127VAC, 130 Telco | 144,000 Amps (AC), 5,000 Amps (Telco) | Direct Plug-In (AC), RJ11 (Telco) | 330V L-N, 400V L-G, N-G |
| pn | Part Number |
|---|---|
| Service Voltage | 110-120 VAC |
| Max Continuous Current | 15 Amps |
| MCOV | 127VAC, 130 Telco |
| Surge Current Rating | 144,000 Amps (AC), 5,000 Amps (Telco) |
| Connection Method | Direct Plug-In (AC), RJ11 (Telco) |
| Voltage Protection Rating | 330V L-N, 400V L-G, N-G |
