Additional information
| pn | Mould Part Number |
|---|---|
| Cable Size | 2, 2/0, 4/0 |
| Nominal Pipe Size | 1-1/4" to 4" Pipe |
| Weld Metal UltraShot | US65, US115, US150 |
| Weld Metal NUWTUBE | NUWTUBE65, NUWTUBE115, NUWTUBE150 |
| Breakout Attribute | pn |

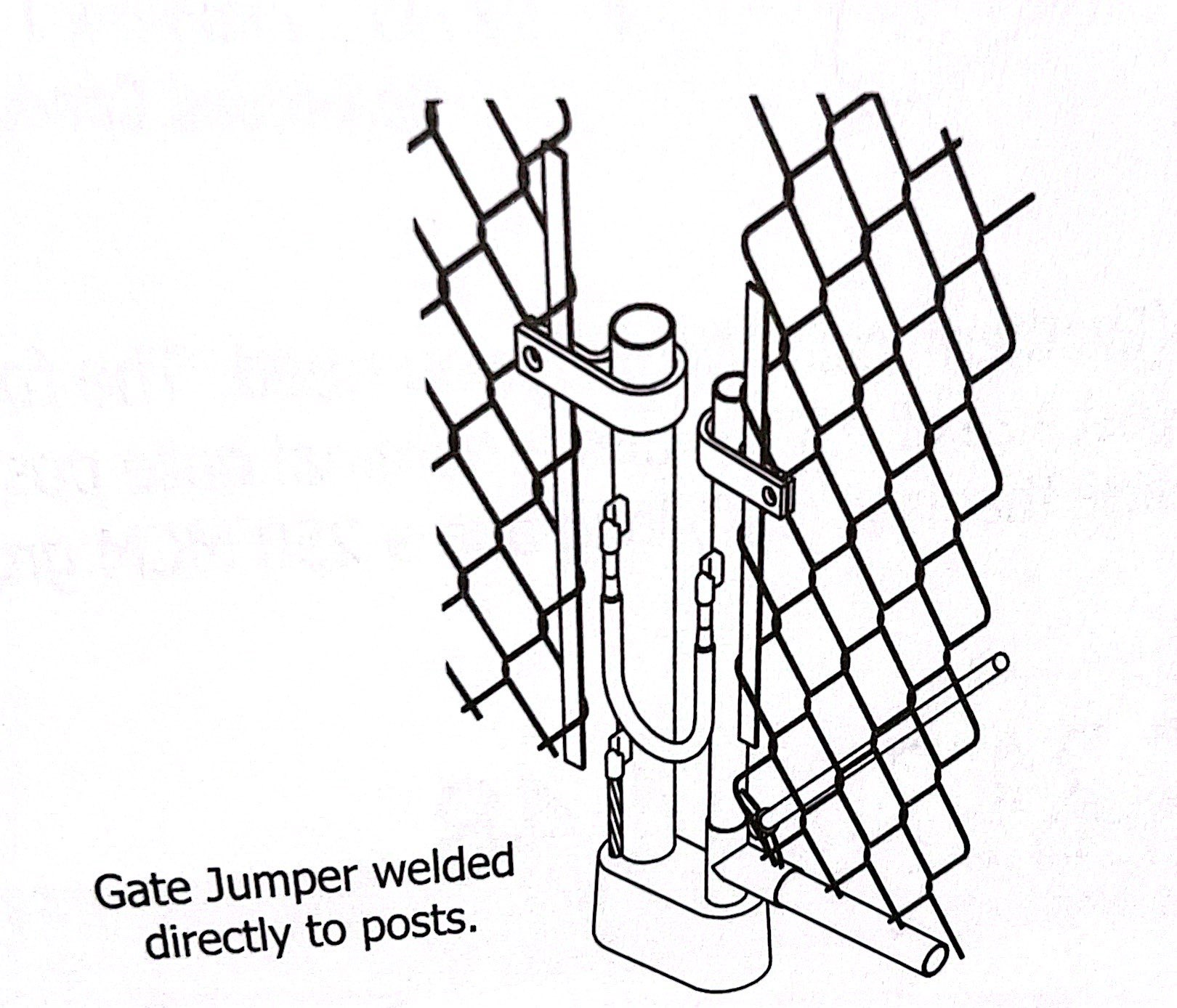

Flexible Gate Jumpers- VD Pipe Connection
VD- Vertical Downward Exothermic Connection Fence Gate grounding and Bonding can be used with CPC’s, Universal Pipe Clamps, or exothermically welded to the fence/gate post. Flex jumpers are made from welding cable. Standard length is 24″. Tables will show standard connection types and lengths. Other Lengths Available.
Click part number below to add the item to your Quote Request.
| Mould Part Number | Cable Size | Nominal Pipe Size | Weld Metal UltraShot | Weld Metal NUWTUBE |
|---|---|---|---|---|
| VD-2SV1.25X4B | 2 | 1-1/4" to 4" Pipe | US65 | NUWTUBE65 |
| VD-2/0V1.25X4B | 2/0 | 1-1/4" to 4" Pipe | US115 | NUWTUBE115 |
| VD-4/0V1.25X4B | 4/0 | 1-1/4" to 4" Pipe | US150 | NUWTUBE150 |
