Kuefler Lightning
|
|
|

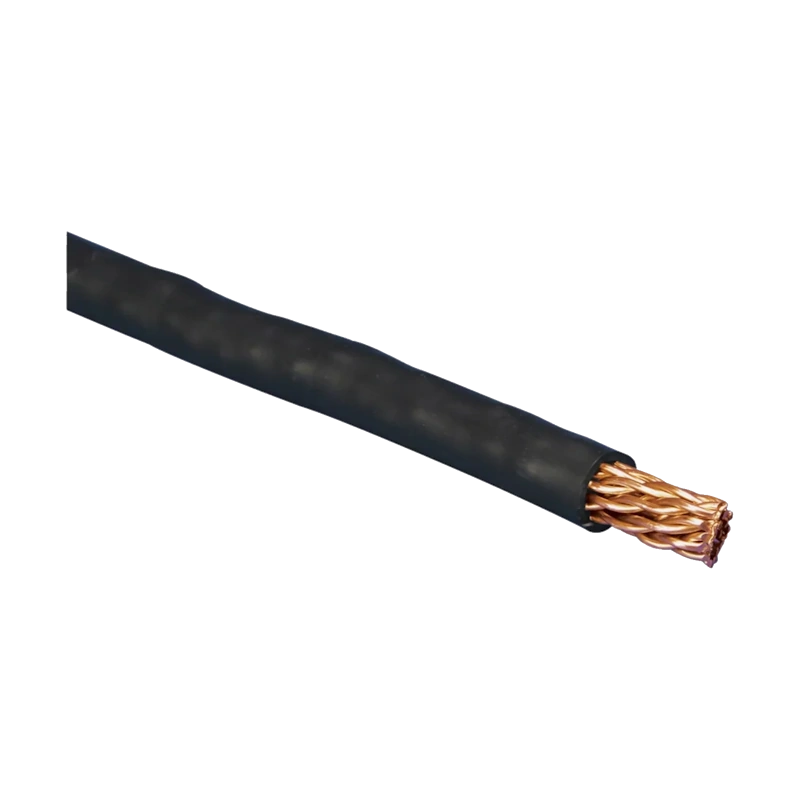

Insulated Smooth weave conductor used in wind turbine blade protection with a flammability rating UL 94V-0; UL 1581 VW-1. Working temperature is -40 to 221 degrees Fahrenheit. Insulation cold bend test per UL 758.
| Part Number | Material | Length | Conductor Size | Cross Section | Diameter | Insulation Thickness |
|---|---|---|---|---|---|---|
| LPA103IN | Aluminum, Polyvinylchloride | 70 mm2 Stranded | 138.15 kcmil | 0.73" | 0.08" | |
| LPA103IN0100.0 | Aluminum, Polyvinylchloride | 328.08' | 70 mm2 Stranded | 138.15 kcmil | 0.73" | 0.08" |
| LPA103IN0500.0 | Aluminum, Polyvinylchloride | 1640.42' | 70 mm2 Stranded | 138.15 kcmil | 0.73" | 0.08" |
| LPC050IN | Copper, Polyvinylchloride | 50 mm2 Stranded | 98.68 kcmil | 0.68" | 0.08" | |
| LPC050IN0044.0 | Copper, Polyvinylchloride | 144.36' | 50 mm2 Stranded | 98.68 kcmil | 0.68" | 0.08" |
| LPC050IN0047.0 | Copper, Polyvinylchloride | 154.2' | 50 mm2 Stranded | 98.68 kcmil | 0.68" | 0.08" |
| pn | Part Number |
|---|---|
| Material | Aluminum, Polyvinylchloride, Copper, Polyvinylchloride |
| Length | 328.08', 1640.42', 144.36', 154.2' |
| Conductor Size | 70 mm2 Stranded, 50 mm2 Stranded |
| Cross Section | 138.15 kcmil, 98.68 kcmil |
| Diameter | 0.73", 0.68" |
| Insulation Thickness | 0.08" |
