Additional information
| Fits Conductor Size | #2 through 2/0, 1/0 |
|---|---|
| Material | Bronze, Aluminum |
| Fits | Class I & II, Class I Only |
IPC 325 Cast Bronze Thru Roof Connector

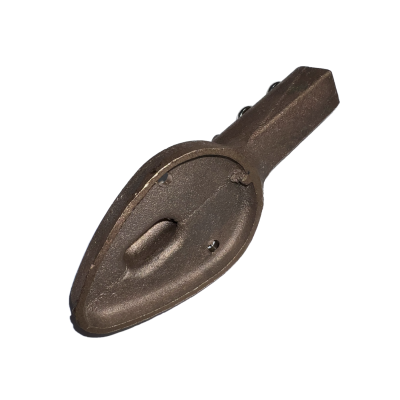

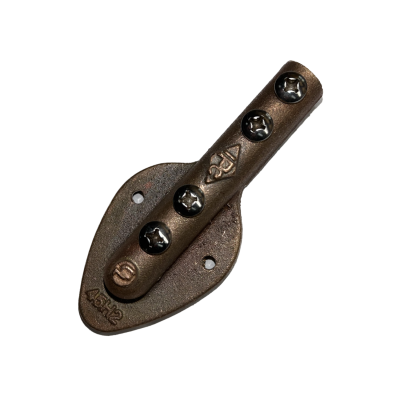

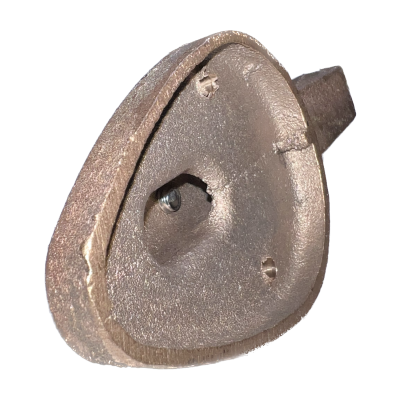

This type of lightning protection thru roof/thru wall connector is recessed on the bottom part to allow for sealant to ensure a water tight seal. Recommend using our M-1 Adhesive Sealant (P783-G). Cast Bronze or Aluminum with four screws to fasten the lightning conductor on the top for the Bronze and one bolt and four crimps for the Aluminum. IPC 325 fits CLass I & II copper lightning conductor sizes from #2 through 2/0. IPC A325 fits 1/0 Class I Aluminum Conductor Only.
